| MOQ: | 1 unit |
| Standard Packaging: | Using Carton, fumigated wood pallet and steel pallet |
| Delivery Period: | 45-60 Working days |
| Payment Method: | T/T, L/C |
| Supply Capacity: | 5000units per year |

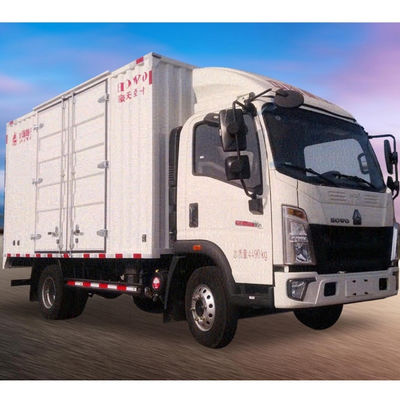

Special Purpose Vehicle Light truck, van Road haulage vehicle series For Logistic
Product features of trucks
It is used for transporting engineering materials, oilfield equipment, living materials, crop seeds and working machines in special road conditions and general transport.
Original cargo compartment integrated design, modular manufacturing. Cargo compartment parts are standardised, high consistency between the cargo compartment and the announcement, and the product is legally compliant, so there is no worry about licensing and annual inspection.
Vehicle production process is in strict accordance with national standards, high vehicle strength to adapt to poor road conditions.
Light weight and high strength, the cargo compartment is made of high-strength steel with strong loading capacity, and the compartment is torsion-resistant and not easy to be deformed.
The bottom plate of the cargo compartment can be optional steel and wood structure wear-resistant, shock-resistant.
The frame can be anticorrosion treatment, durable.
Light truck van-type transporter product features
It is used for the logistics transport of express objects, rice, grain and oil, fruits and vegetables, tobacco, alcohol, home appliances and other daily life materials.
Original compartment: integrated design, modular manufacturing, standardisation of compartment parts, better consistency between the original compartment and the bulletin, product compliance with the law, no worries about licensing and annual inspection.
Light weight and high strength: the cargo compartment is made of high-strength steel sheet roll-pressing, and the corners of the compartment are reinforced with corner wrapping, which has the advantages of light weight, high strength, strong load-bearing, corrosion resistance and low fuel consumption.
Convenient loading: the bottom plate is made of patterned plate, the rear door opens at 270 degrees, and the side panels of the compartment can be equipped with optional side opening doors, which makes loading more convenient.
Good stability: the cross and longitudinal beams of the wagon are connected by riveted and bolted joints, which can effectively avoid welding and provide higher strength; the chassis frame and the chassis frame are connected by diagonal plates, which provides better stability.
Good sealing: the carriages have been tested by long time rain before leaving the factory, with good sealing and no water leakage. The side doors and rear doors are equipped with rain gutters as standard, and the two sides of the bottom plate are equipped with water-guiding gutters as standard, and the arching design of the top plate prevents water from accumulating.
Product Parameters
| Product Model | Chassis Model | Gross Weight (kg) | Curb Weight (kg) | Engine Model | Fuel type | Wheelbase(mm) | Cargo L(mm) | Cargo W(mm) | Cargo H(mm) |
| ZZ5047XXYF3314F145 | ZZ1047F33 14F145 |
4495 | 2805 | WP2.3NQ130E61 WP2.5NQ160E61 |
China VI | 3280 3360 |
4150,3850 | 1900,2050 2100 |
1850, 2050, 2100, 2300 |
| ZZ5047XXYF3415F145PHEV16 | ZZ1047F3415F 145PHEV16 | 4495 | 3950 | WP2.3NQ130E61 | Diesel/electric hybrid | 3360 | 4150,3850 | 2100 | 1850, 2100, 2300 |
| ZZ5047XXYG3314Z146BEV | ZZ1047G3314 Z146EV |
4495 | 3100 | TZ230XSIN101 | Pure electric | 3280 | 4150,3850 | 1900,2050 2100 |
1850, 2100, 2150, 2300 |
| ZZ5047XXYG3314Z147BEV | ZZ1047G3314 Z147EV |
4495 | 3100 | TZ230XS-ZQRM130V08 | Pure electric | 3280 | 4150,3850 | 1900,2050 2100 |
1850, 2100, 2150, 2300 |
| ZZ5047XXYG3314Z144BEV | ZZ1047G331 4Z144EV |
4490 | 2980 | TZ230XSIN101 | Pure electric | 3280 | 4150,3850 | 1900,2050 2100 |
1850, 2100, 2150,2300 |
Detailed Pictures
|
|
