Special Purpose Vehicle Rubbish Transfer Semi-trailer or Use for Bulk Grain Transport

Products

Special Purpose Vehicle Rubbish Transfer Semi-trailer or Use for Bulk Grain Transport

MOQ:	1 unit
Standard Packaging:	Using Carton, fumigated wood pallet and steel pallet
Delivery Period:	45-60 Working days
Payment Method:	T/T, L/C
Supply Capacity:	5000units per year

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

BIG AUTO

Certification

Model Number

Rubbish Transfer Semi-trailer

Product Name:

Rubbish Transfer Semi-trailer Or Use For Bulk Grain Transport

Unloading Method:

Crawler Type Flat Push

Product Model:

SGZ9400ZLJ

Volume(m³):

32-43

Gross Weight(kg):

40000

Total Weight(kg):

10850

Wheelbase(mm):

5445+1310+1310, 5145+1310+1310

Cargo Length(mm):

11105, 10805

Cargo Width(mm):

2550, 2520

Cargo Height(mm):

3985, 3905, 3805, 3705, 3605, 3505

Minimum Order Quantity:

1 unit

Packaging Details:

Using Carton, fumigated wood pallet and steel pallet

Delivery Time:

45-60 Working days

Payment Terms:

T/T, L/C

Supply Ability:

5000units per year

Highlight:

Bulk Grain Transport Semi-trailer

Rubbish Transfer Semi-trailer

Product Description

Special Purpose Vehicle Rubbish Transfer Semi-trailer or Use for Bulk Grain Transport

ubbish Transfer Semi-trailer or Use for Bulk Grain Transport Features:

Used for transporting materials such as gravel, sand, sawdust, bulk coal, slag, asphalt particles and so on.
Low centre of gravity, safer: the box adopts round arc-shaped carriage, the upper and lower are of equal width, even loading, low centre of gravity, strong stability, crawler type unloading, no need to lift to unload, safer than traditional lifting unloading.
Reliable function and higher strength: the box is made of wear-resistant plate and high-strength material, frame structure, with 2-3 centre columns on each side to prevent expansion of the box. The bottom conveyor belt is made of thickened and high strength conveyor belt, which has certain impact toughness and is more durable. Push plate back and forth independent hydraulic control, the front plate wire rope is thickened twine oil lifting wire rope, take straight pull, straight release type, long service life, easy to replace.
Unloading fast, clean and no residue: the use of conveyor belt and push plate together with flat push type unloading, the whole unloading about 1 minute. Push plate and the side of the spring flexible transition between the board, fit tightly, good sealing, scraping more clean, discharge less residue, good adaptability to changes in the medium.
Intelligent and humanised: it can be operated by one key in the driver's cab and unloaded remotely, which is convenient and humanised. The proximity switch line is a connector, preventing the electromagnetic induction switch from interfering when pulling iron ore. There is a cover plate at the front of the top cover to prevent the material from falling into the compartment and the hydraulic winch when loading.
Hydraulic system: It adopts famous brand piston pump, hydraulic valve group, motor and large speed ratio reducer, featuring strong power and reliable performance. The rear door cylinder is protected with sheath to prolong the service life of the cylinder.

Product Parameter

Type	Unloading method	Product Model	Volume (m³)	Gross weight(kg)	Total weight(kg)	Wheelbase (mm)	Cargo length(mm)	Cargo width(mm)	Cargo height(mm)
Rubbish transfer semi-trailer	Crawler type flat push	SGZ9400ZLJ	32-43	40000	10850	5445+1310+1310 5145+1310+1310	11105, 10805	2550, 2520	3985, 3905, 3805, 3705, 3605, 3505
		SGZ9401ZLJ	32-43	40000	9550, 9250, 9000,8700	3960+1310+1310 3860+1310+1310 3660+1310+1310	9480, 9380, 9180	2550, 2520	3985, 3905, 3805, 3705, 3605, 3505, 3205
		SGZ9402ZLJ	32-43	40000	12000,11850, 11550,11250, 10950	3960+1310+1310 3860+1310+1310 3660+1310+1310	9480, 9380, 9180	2550, 2520	3985, 3905, 3805, 3705, 3605, 3505, 3205
		SGZ9404ZL	45-61	40000	13500,13000, 12600, 12300	7300+1310+1310 7150+1310+1310 6800+1310+1310 6650+1310+1310	13000, 12500, 12000	2550, 2520	3980, 3910, 3810, 3710, 3610, 3510
Bulk Grain Transport Semi-trailer	Crawler type flat push	SGZ9400ZLS	27-41	40000	9350, 9150, 9000,8800, 8510	3915+1310+1310 3715+1310+1310 3560+1310+1310	9520, 9150, 9050	2550, 2520	3990, 3910, 3810, 3710, 3610, 3510, 3410
		SGZ9401ZLS	27-41	40000	12550,12250, 11950,11650, 11450	3960+1310+1310 3860+1310+1310 3660+1310+1310 3915+1310+1310 3715+1310+1310	9520, 9420, 9220, 9150	2550, 2520	3990, 3910, 3810, 3710, 3610, 3510, 3410
		SGZ9402ZLS	26-43	40000	8350, 8750, 9150, 8320	3960+1310+1310 3860+1310+1310 3660+1310+1310	9625, 9425, 9225 8925	2550, 2520	3250, 3350,3450, 3550, 3650, 3750, 3850, 3150
		SGZ9403ZLS	34-52	40000	13200, 13600, 14000, 14500	5455+1310+1318 5755+1310+1310 6000+1310+1310	11600, 11300	2550, 2520	3150, 3250, 3350, 3450, 3550, 3650, 3750, 3050
		SGZ9404ZLS	29-43	40000	8500, 8200, 7730	3960+1310+1310	9355	2550, 2520	3500, 3600, 3700
		SGZ9405ZLS	42-61	40000	13700, 13400, 13100, 12800, 12500	7300+1310+1310 7000+1310+1310 6800+1310+1310	13000, 12700, 12500	2550, 2520	3995, 3950, 3850, 3750, 3650, 3550, 3450, 3350, 3250, 3150

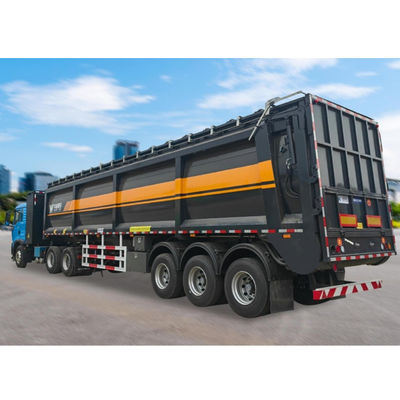

Detailed Picture

Special Purpose Vehicle Rubbish Transfer Semi-trailer or Use for Bulk Grain Transport 0
