| MOQ: | 1 unit |
| Standard Packaging: | Using Carton, ro-ro ship |
| Delivery Period: | 60 Working days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000units per year |
High-carrying Capacity Used Heavy Truck HOWO 7 Powerful Self-dumping Truck
Core Advantages of HOWO-7 Dump Trucks:
Powerful Performance, Efficient Operations
Engine: Equipped with the Sinotruck D10.38-50 engine, a 6-cylinder in-line, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail engine with a displacement of 9.726L. It delivers a maximum horsepower of 380 hp, a maximum output power of 274kW, and a peak torque of 1560N·m. This powerful engine ensures outstanding performance even under heavy loads and complex road conditions.
Transmission: Fitted with the Sinotruck HW19712 transmission, featuring 12 forward gears and 2 reverse gears. The smooth shifting and high transmission efficiency enable precise matching to various working conditions, enhancing transportation efficiency.
High Load Capacity and Durability
Chassis and Axles: The robust chassis measures 5.6 x 2.3 x (1.2 + 0.3) mm. It is paired with the HF9 front axle and AC16 rear axle, with the rear axle capable of handling a maximum load of 18,000kg (dual axles) and a speed ratio of 5.45. This ensures stability and durability during heavy-duty transportation.
Tires: Equipped with 10 steel-belted tires, each with a specification of 12.00R20, providing excellent grip and load-carrying capacity, suitable for various complex road conditions.
Flexible Design for Efficient Discharging
Cargo Compartment: The cargo compartment measures 5.6m in length, 2.3m in width, and 1.12m in height. The rear-tilting design allows for quick and efficient unloading, saving time and labor.
Vehicle Dimensions: The overall length is 8.545m, width is 2.496m, and height is 3.45m, with a wheelbase of 3825+1350mm. The approach angle is 19°, and the departure angle is 23°. These dimensions ensure good passability and adaptability to various construction sites.
Comfortable Cabin and Intelligent Control
Cabin Configuration: The cabin is equipped with a manual air conditioning system to provide a comfortable driving environment. Additionally, the vehicle features an ABS anti-lock braking system to ensure driving safety.
Fuel Economy: A large 300L fuel tank meets the needs of long-distance transportation. The optimized power system ensures fuel efficiency, reducing operating costs.
HOWO 7 Parameters
| Basic Information | |
| Drive Type | 6X4 |
| Wheelbase | 3825+1350mm |
| Engine | Sinotruck D10.38-50 |
| Transmission | Sinotruck HW19712 |
| Rear Axle Ratio | 5.45 |
| Length*Width*Height | 8.545m *2.496m *3.45m |
| Front/Rear Wheelbase | 2022mm/ 1830mm |
| Vehicle Weight | 12.19 tons |
| Rated load | 12.68 tons |
| Gross mass | 25 tons |
| Approach/Departure Angle | 19 degrees(°)/ 23 degrees(°) |
| Engine parameters | |
| Engine type | In-line six-cylinder, water-cooled, four-stroke, supercharged intercooled, high-pressure common rail |
| Fuel type | Diesel |
| Displacement | 9.726L |
| Maximum Horsepower | 380 hp |
| Maximum output power | 274kW |
| Maximum torque | 1560N.m |
| Transmission Parameters | |
| Transmission Model | Sinotruck HW19712 |
| Forward gear | 12-speed |
| Reverse gear | 2-speed |
| Cargo compartment parameters | |
| Cargo compartment length*width*height | 5.6m*2.3m*1.12m |
| Type of cargo compartment | Rear-rotating tipper |
| Fuel tank | |
| Fuel tank capacity | 300L |
| Chassis Parameters | |
| Frame Size | 5.6 x 2.3 x (1.2 + 0.3) mm |
| Front axle description | HF9 |
| Allowable front axle load | 7000kg |
| Rear axle description | AC16 |
| Rear axle permissible load | 18000kg (twin axes) |
| Speed Ratio | 5.45 |
| Number of spring plates | 10/12 |
| Tires | |
| Tire Specification | 12.00R20 |
| Number of tires | 10pcs |
| Tire Type | Steel wire tires |
| Handling Configuration | |
| ABS | Yes |
| Interior Configuration | |
| Air conditioning | Manual |

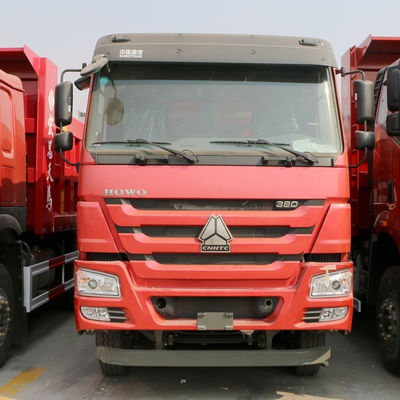

Product Pictures
|
|
