| MOQ: | 4 units |
| Standard Packaging: | steel frame |
| Delivery Period: | 60 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000 units/year |
5-Door 5- Seat Electric Car RL7 Electric Car RL7 with Good Range Max. Speed 150
General Introduction:

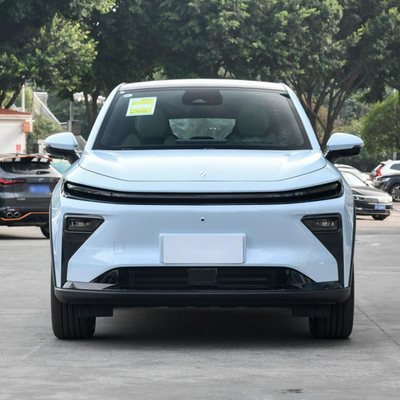

Ⅰ.Appearance:The front face of RL7 adopts a closed grille with slender through LED light bands, which is highly recognizable. Body size 4690/1892/1650mm, wheelbase 2775mm, the whole car looks very robust. The side of the vehicle is smooth and adopts the slippery back design, which is very dynamic.
II. Interior Introduction: RL7 adopts a dual-patch color scheme and uses a large number of faux suede material cladding, the overall texture is superior. With 9.2-inch full LCD instrumentation and 15.4-inch floating center control screen, as well as AR-HUD head-up display, making the cockpit full of technology.
III. Power & Range: The RL7 is equipped with a single motor with two layouts: front-mounted and rear-mounted, and depending on the battery power, it can realize a pure electric range of 450km and 605km in CLTC mode. especially the rear-mounted motor version, which takes only 6.8 seconds to accelerate to zero hundred and 2.8 seconds to accelerate from 0-50km/h.
All in all, the RL7 is a model with great range, excellent exterior design, comfortable interior, spacious driving and riding space, and powerful intelligent systems.
RL7 Technical Specifications
| Technical Specifications | |
| DRIVE MOTOR | DESCRIPTION |
| Motor Type | Permanent Magnet Synchronization |
| Number of Driving Motors | Single Motor |
| Motor Layout |
Front |
| Maximum Power(kW) |
120 |
| Maximum Torque(N.m) |
240 |
| Maximum speed(Km/h) |
150 |
| BATTERY PACK | DESCRIPTION |
| Battery Type |
Lithium iron phosphate battery |
| Rated Power(kW.h) |
50.4 |
|
CLTC(km) |
450 |
|
Fast Charging Time (h) |
0.5h |
|
Battery Fast Charge Range(%) |
80 |
| EXTERIOR | DESCRIPTION |
| Length*Width*Height(mm) |
4690*1892*1650 |
| Wheelbase(mm) |
2775 |
| Wheel Track Front(mm) |
1600 |
| Wheel Track Rear(mm) |
1610 |
| Approach angle |
17% |
| Departure angle |
20% |
| Minimum Turning Radius | 5.4 |
| WEIGHT | DESCRIPTION |
| Curb Weight(Kg) |
1780 |
| Maximum full load weight(Kg) |
2195 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Mcpherson independent suspension |
| Rear Suspension |
Torsion beam non-independent suspension |
| Front Brakes |
Ventilated Disc Brake |
| Rear Brakes |
Disc Brake |
| Parking Brake |
Electric Parking |
| ABS/EBD | Standard |
| Drive Type |
FF |
| Shift Mode |
Electronic Wye shift |
| Steering Form | Electric Power Steering (EPS) |
| Tire Size |
215/ 60 R17 |
| BODY | DESCRIPTION |
|
Body Structure |
Five-door, Five-seat SUV |
|
Seat Belt Type |
Three-Poin |
|
Air Conditioning |
Automatic air conditioning |
Detailed display pictures
Applications:
City commuting: The low noise and zero emissions characteristics of electric vehicles make them ideal for city commuting, especially on congested urban roads.
Short trips: The range of EVs makes them ideal for short trips on weekends and holidays, without the need to worry about charging after a long journey.
Shared mobility: The low operating costs and environmental advantages of electric vehicles make them a popular choice for shared mobility services, such as car sharing and electric cab services.
Tourist Attractions: In scenic areas, electric sightseeing buses and ferries provide an environmentally friendly mode of transportation while reducing the impact on the natural environment.
Government and corporate fleets: Governments and corporations are demonstrating their commitment to environmental protection and sustainable development by purchasing electric vehicles as official vehicles or business vehicles.
|
|
