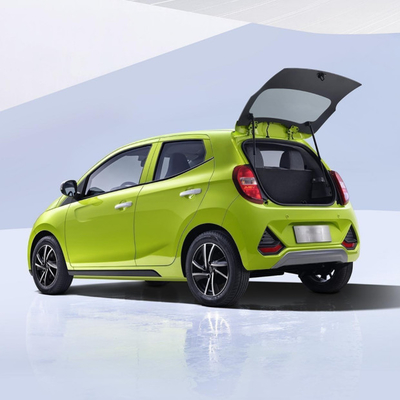

Big Capacity Small Electric Car EV2 Support Household Electricity Charging
EV2 Advantages Introduction
Better Performance in Cruising Range
The cruising range of EV2 is 175km, while the real-world driving range can reach 206km. Equipped with the 30% efficient energy recovery system, low battery reminder and range protection functions, the vehicle can continue to drive about 10 km (at room temperature) even at 0% battery. The double protection methods help solve your EV range anxiety.
Master of Motor and Battery
A high-quality permanent magnet synchronous motor can achieve a maximum power of up to 26KW. Equipped with the SUNWODA lithium iron phosphate battery, its energy density can reach 120wh/kg, with a capacity of up to 15.86KW. Empowered by well-known brands, EV2 makes you feel at ease with more reliable products.
Showcase Strength from the Start
The maximum torque of the high-specification motor of EV2 reaches 84N·m, which is more powerful than the torque of most 1.2L naturally aspirated fuel cars. From the start to acceleration, EV2’s power constantly breaks through boundaries, creating a rapid driving pleasure.
The Best Axle-load Ratio in Its Class
The front-to-rear axle-load ratio of EV2 under full load is 49:51, achieving an excellent balance. With a low-gravity design, its driving maneuverability is superior to its class.
Exclusive Protection Armor of the EIC System
Self-developed EIC protection system creates an electric drive system with small size, light weight, and low energy consumption. Exclusive battery pack, electrical appliance and EIC functional parts can achieve IP67-level dustproof and waterproof functions, chassis protection and other functions, to comprehensively ensure the safety of the EIC system.
All-round Intelligent Master
Equipped with standard ABS+EBD, automatic locking system when speed exceeds 20km/h, hill assist system (HAS), reversing radar and reversing camera system, and tire pressure monitoring system (TPMS), etc., EV2 makes you worry-free during travel by avoiding extra risks with all above systems on guard.
EV2 Technical Specifcations
| EV2 SPECIFICATIONS | |
| DRIVE MOTOR | DESCRIPION |
| Motor Type | Permanent Magnet Synchronization |
| Number of Driving Motors | Single Motors |
| Motor Layout | Front |
| Peak Power | 26 kW |
| Maximum Torque | 84 N.m |
| Max.Speed | 100Km/ h |
| CLTC Pure Electricity Range | 201 Km |
| BATTERY PACK | DESCRIPTION |
| Battery Type | Lithium Iron phosphate |
| Battery Capacity | 15.86 kW.h |
| Battery Cooling Method | Air Cooling |
| Battery Energy Density | 122 Wh/kg |
| EXTERIOR | DESCRIPTION |
| Length * Width * Height (mm) | 3500*1646*1460 |
| Wheelbase (mm) | 2340 |
| Wheel Track Front (mm) | 1420 |
| Wheel Track Rear (mm) | 1420 |
| Min. Ground Clearance With Full Load (mm) | 110 |
| Curb Weight (Kg) | 890 |
| Maxmum Load Mass (Kg) | 1190 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Mcpherson Independent Suspension |
| Rear Suspension | Trailing Arm Non-independent Suspension |
| Front Brakes | Disc Brakes |
| Rear Brakes | Drum Brakes |
| Parking Brake | Hand Parking Brake |
| Drive Type | FF |
| Steering Form | Electric Power Steering |
| Tire Size | 165/ 65 R14 |
| BODY | DESCRIPTION |
| Body Structure | Five-door, Four- seater Hatchback |
| Seats Number | 4 |
| Seat Belt Type | Three- Point |
| Number of Airbags | 2 |
| Type of Air Conditioner | Manual Air Conditioning |
Detailed Pictures
Cooperation Mode
According to our many years of oversea investment and cooperation practice, we have explored the following modes of cooperation. Once you have any other cooperation ideas, it is highly appreciated to contact with us.
A.Trade Agency
At first stage, we can do exporting & importing trade business, gradually build the mutual trust and favorable business relationship, and then develop to project cooperation. If our partner hasn’t gathered enough capital to do the project, this cooperation way is recommended to accumulate funds and experience for the project start later.
B.Turnkey Project/ Technology Transfer Mode
In this project, our oversea partners take 100% shareholdings, and our Group assists you with technology and all necessary equipment of the factory, all in "turn-key project" mode. You pay for the technology transfer, while we help you to establish the assembly factory and provide you automobile parts in SKD or CKD status for assembling in order to cut your cost and simplify the production process. We provide you with all the necessary technology assistance and auto parts till you can master all required technologies and be capable to assemble vehicles on your own completely.
C.Joint Venture Mode
This is our key cooperation mode, we have the following basic ways:
1st way: we take 15% of the shareholding and being responsible for offering the Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
2nd way: we take 35% of the shareholding and being responsible for offering the Key Equipments, Business Plan Assistance, Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
3rd way: we take more than 35% of the shareholding and being responsible for offering the Capital, some Credit based on reliable guarantee, Key Equipments, Business Plan Assistance Production Line Layout & Plant Design, Equipment Installation & Debugging, Technology Support, Worker Training, Manufacturing, Production & Quality Control Management, Advice & Guidance for Sales & After-Sales, Development Plan & Solution, etc.
|
|
