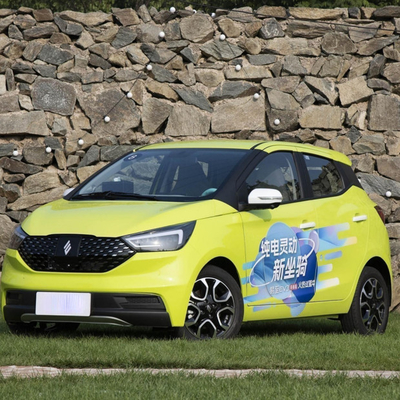

Comprehensive Protection Electric Car EV3 High Speed Long Range Electric Car
E3 Advantages Introduction
Unibody stampingdoors Providing enhanced safety:
Unibody stamping doors are more durable, effectively absorb the impact energy in collision accidents, ensureing the safety of passengers.
High-strength body for all-around protection:
The high-strength cage body with rear front side member beams fork structure, realizes better force distribution. The series are equipped with front anti-collision beams of 1500MPa high-strength thermal- forming steel, providing comprehensive and effective safety guarantee for passengers.
All-series security configuration as standard featured various of security measures:
Intelligent safety measures include ABS+EBD, seat belt remiinder, ISOFLX for child safety seat as standard; HSA(Hill Start Assist) system to prevent vehicle reverse when moving off; TPMS(tire pressure monitoring system) to effectively lower the risk of traffic accidents. All the measures ensure a more secure and reassuring driving exprience.
Self-developed vehicle control system for comprehensive performance enhancement:
The self-developed third-generation vehicle control system, coupled with the VCU controller delivers optimization in vehicle dynamic performance, commfort level,safty and energy cnsumption.
AMEV pure electric platform offering ultimate driving experience:
The world's leading pure electric plantform-AMEV Pure Electric Plantform, features an integrated framework that builds the reasonable layout for vehicle performance and stable driving experience, differing from the petrol- vehicle- based models with limit in space and chassis layout.
Wide tread for agility of steering
1420mm wide weel tread, turing radius≤5m, side angle ≤35° in empty. The wide wheel tread ensures vehicle stability and minimizes the risk of roll over, and the small turning radius enhances agility of steering.
EV3 Technical Specifcations
| EV3 SPECIFICATIONS | |
| DRIVE MOTOR | DESCRIPION |
| Motor Type | Permanent Magnet Synchronization |
| Number of Driving Motors | Single Motors |
| Motor Layout | Front |
| Peak Power | 36kW |
| Maximum Torque | 146 N.m |
| Max.Speed | 100Km/ h |
| CLTC Pure Electricity Range | 320 Km |
| BATTERY PACK | DESCRIPTION |
| Battery Type | Ternary Lithium Battery |
| Battery Capacity | 31.2 kW.h |
| Battery Cooling Method | Air Cooling |
| Chargng Method | AC+DC Charging |
| EXTERIOR | DESCRIPTION |
| Length * Width * Height (mm) | 3720*1640*1535 |
| Wheelbase (mm) | 2390 |
| Wheel Track Front (mm) | 1420 |
| Wheel Track Rear (mm) | 1420 |
| Approach / Departure Angle (°) | 17/ 30 |
| Minimum Turning Radius (m) | 5 |
| Curb Weight (Kg) | 1125 |
| Maxmum Load Mass (Kg) | 1420 |
| CHASSIS | DESCRIPTION |
| Front Suspension | Mcpherson Independent Suspension |
| Rear Suspension | Torsion Beam Non-independent Suspension |
| Front Brakes | Ventilated Disc Brakes |
| Rear Brakes | Drum Brakes |
| Parking Brake | Hand Parking Brake |
| Drive Type | FF |
| Steering Form | Electric Power Steering |
| Tire Size | 175/ 60 R15 |
| BODY | DESCRIPTION |
| Body Structure | Five-door, Four- seater Hatchback |
| Seats Number | 4 |
| Seat Belt Type | Three- Point |
| Number of Airbags | 2 |
| Type of Air Conditioner | Automatic Air Conditioning |
Detailed Pictures
FAQ
Q1 What types of payment terms are acceptable?
A:We acceptable T/T, L/C
Q2 What is your minimum order requirement?
A: 1 unit.
Q3 What is your distributor support policy in international markets?
A:We invest technologies and equipment, while our partners provide lands,workshops,
funds, management and marketing.
1. Offering you an easy and quick approach to entering automobile industry
2. Assembling vehicles using KD parts to save cost.
3. Our professional team prepares architectural design and assembly design based
on the end products our partners choose.
4. Our engineers provide job training and technical service on site.
5. Quality control system makes sure vehicles come off our assembly lines get
universal quality
Q4 What is your shipping method and delivery time?
A: Transported by air, container, ro-ro ship. LCL quantities allow one vehicle to be shipped. Orders will be sent via FCL shipping. Usually the delivery time is 15 to 25 days after receiving the deposit.
Q5 What are the advantages of working with us?
A:1. Tariff Gap:Import tariff gap between KD and CBU would be totally translated to profit.
2.Competitive:Auto technologies in China have improved greatly in the last decade.
3. Cheap:Components and parts from China are much cheaper than western counterparts.
4. After-sale Service: Easier access to spare parts and technologies than selling CBU
5. Low Initial Investment:Starting from SKD with only assembly line for only 1 million USD
|
|
