| MOQ: | 4 |
| Price: | 8990USD- 9990USD |
| Standard Packaging: | Steel frame |
| Delivery Period: | 60 work days |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 5000units per year |

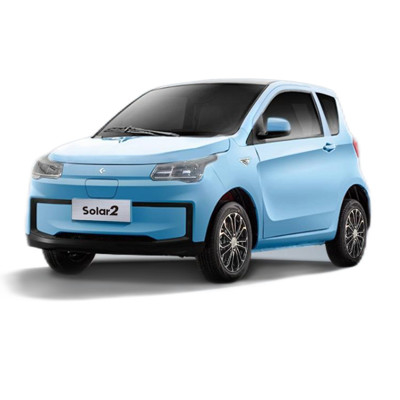

EEC-certified 0 Pollution Electric Car Solar 2 Low usage Cost
Solar 2 Features
1. Extremely low cost of ownership: power consumption 6 KWh/1,000 Km (ECO), 8 years or 120,000 km warranty on motor, battery and controller, extremely low traveling cost of $0.03/Km. combined annual operating cost is less than 1/20th of that of gasoline vehicles.
2. Excellent handling performance: standard EPS for more driving pleasure, 210 mm ground clearance for better passing, F disc brakes and R drum brakes for more reliable braking performance.
3. Comprehensively improve the safety and reliability of the vehicle: with a cage-type high-strength steel body front bumper beams and side bumper beams, equipped with a short-circuit protection charging and discharging safety battery system, with driver airbag and seat belt hill start assist control system. Realize body safety & battery safety & driving safety, and reach the component protection level IP67 standard.
4. 0-pollution, 0-emission solar car: core patented technology of curved glass lamination process, solar system power 300W, 99.9% efficient MPPT controller, plus conversion rate of 23.7%. 7 % IBC monocrystalline silicon modules, so that the car in the sunshine conditions, the daily range increased by 30KM
|
Technical Specifications |
|
| BASIC INFORMATION | DESCRIPTION |
| Body Structure | 2 doors / 2 Seats Mini car |
| L*W*H( mm) | 2880*1500*1530 |
| Driver's position | LHD |
| Turning radius (m) | 4.2 |
| Ground clearance of chassis (mm) | 210 |
| Max. speed( km/h) | 90 |
| NEDC Range( km) | 301 (ECO-380) |
| Curb weight( Kg) | 850 |
| SOLAR SYSTEM | DESCRIPTION |
| Solar Chip Type | Single-Crystal Silicon |
| Solar cell process | IBC-Interdigitated back contact |
| Solar panel process | Full roof curved glass lamination |
| Solar panel power (W) | 300 |
| Controller type | MPPT |
| BATTERY&CHARGING & MOTOR | DESCRIPTION |
| Battery type | Lithium( NCM622) |
| Battery pack warranty | 8 Years/120000Km |
| Battery power (KWH) | 23.04 |
| SOC20% Charging time (h) | 6 |
| Motor type | PMSM-Permanent magnet synchronous motor |
| Rated power (KW) | 12 |
| Peak horsepower (Ps) | 34 |
| Peak torque( N.m ) | 110 |
| Number of motors | Single motor |
| CHASSIS & STEERING & WHEEL & BRAKE | DESCRIPTION |
| Front / Rear suspension type |
McPherson independent suspension Integrated bridge non independent suspension |
| Steering type | EPS |
| Tire specifications | 165/65R14 |
| Parking brake type | Hand brake |
| Front / Rear brake type | Disc / Drum brake |
| INTERIOR CONFIGURATION | |
|
1. Inner mirror 2. Room lamp 3. visor 4. Fabric seats 5. Combination instrument panel 6. Knob type gear shifter 7.Cup holder 8.Combination switch (light/wiper) 9. 9-inch floating screen 10. Color touch screen 11.Screen Language (English, etc) 12.USB mode 13. Bluetooth mode 14. Rear View Camera 15. Google Maps 16. Radio 17. music player 18. video player 19. 12V External power supply 20. Air-conditioning |
| DRIVER'S TOOL AND ACCESSORIES | |
| |
|
| Car key Charging gun Discharge gun Warning signs Driver's toolkit |
Detail pictures
Company profile
CHONGQING BIG SCIENCE & TECHNOLOGY DEVELOPMENT CO., LIMITED, We are a well-known international auto manffacturer and oversea auto investment corporation in China. Our mission is to focus on overseas investment in automotive assembly plant chain projects.Our investments include capital and automotive manufacturing technology, brands, key equipment,kit car spare parts and credit support under guarantee conditions.We are a joint venture corporation control by China national automobile corporation and China financial capital investment corporation.The Chinese government has proposed "One Belt And One Road".Chinese carmakers are keen to "go global".While helping developing countries to achieve industrialization, we should also develop ourselves.http://chainautoassembly.com is also another official site of ours.
|
|
